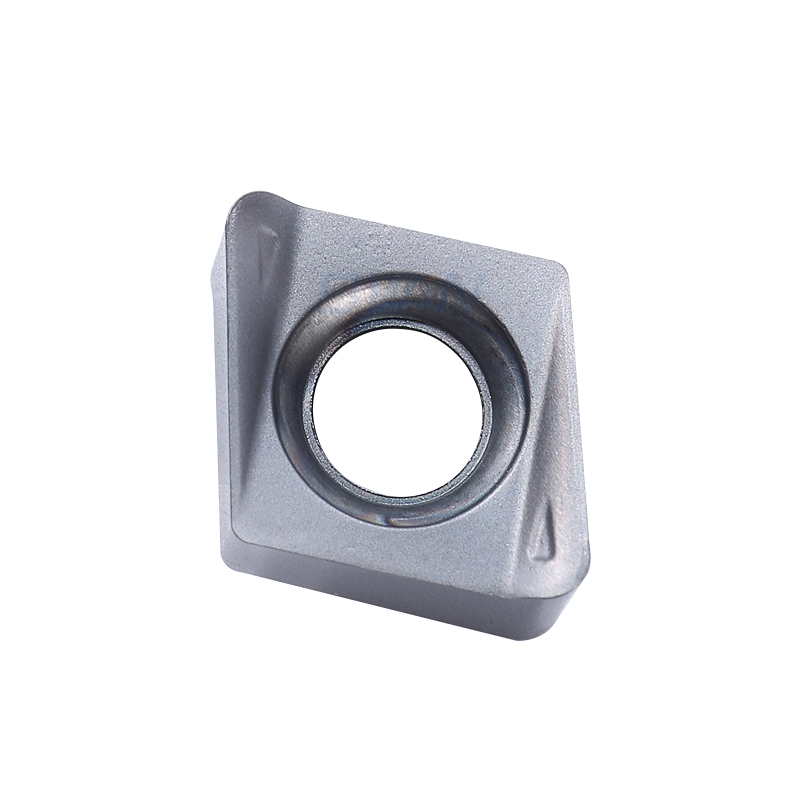

4NKT Milling Insert — Grade BT015 & BT065 Carbide Indexable Insert

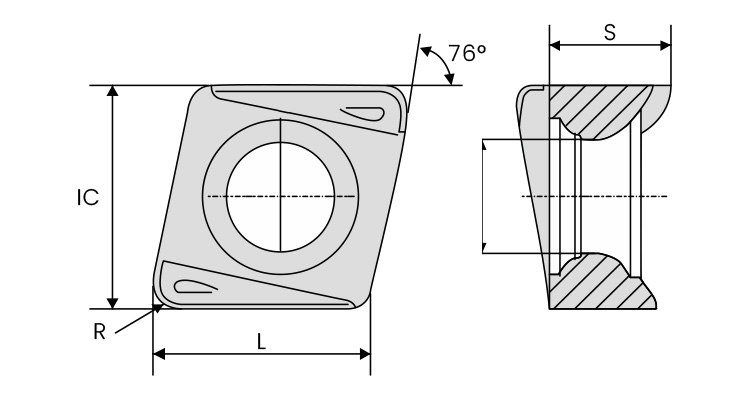

4NKT060308R & 4NKT090408R Milling Insert Carbide Specifications:

Notes: We offer full customization for all specs. For more information, please contact us at any time.

FAQs:

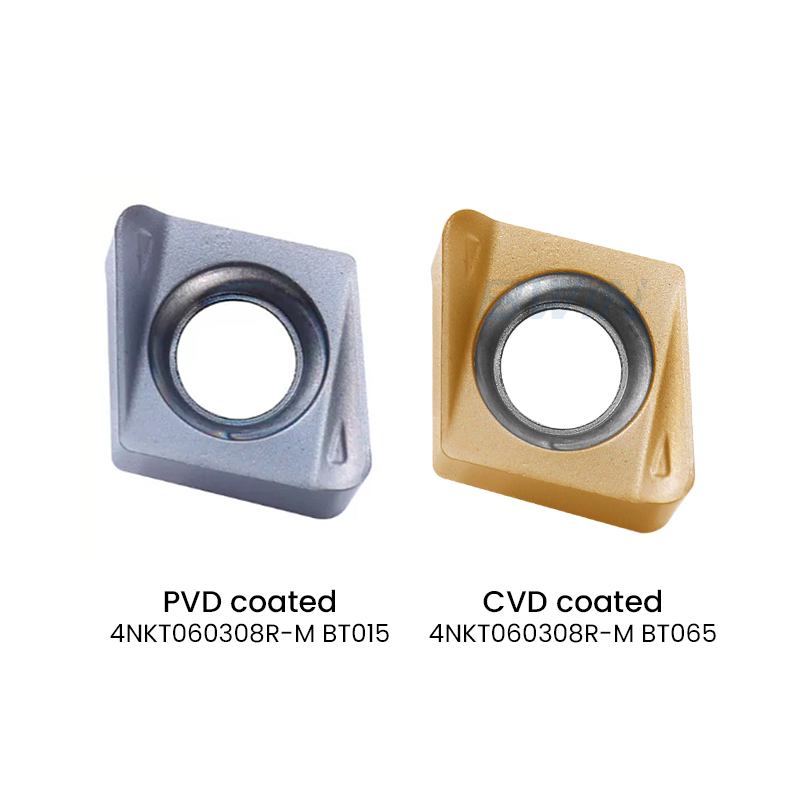

1. What is the difference between grades BT015 and BT065 on this 4NKT milling insert?

Specifically, Grade BT015 features a wear-resistant PVD coated insert layer for carbon steel, alloy steel, stainless steel, and cast iron. By contrast, Grade BT065 applies a thick CVD coating dedicated to high-speed dry milling in mild steel. Therefore, machine shops pair this carbide milling insert with proper speeds to maximize edge tool life.

2. Does this 4NKT060308R and 4NKT090408R line fit 90-degree shoulder milling cutters?

First, both sizes mount directly into standard 90-degree square shoulder cutter bodies. In addition, operators choose this shoulder milling insert for true perpendicular sidewall step milling and use it as a robust face milling insert for surface passes. Therefore, this milling cutter insert covers both profiling and flat surfacing tasks.

3. How does this replaceable milling insert perform in stainless steel and alloy steel?

First, the positive axial rake on this replaceable milling insert lowers cutting resistance during entry. In addition, the micro-grain substrate works as an effective stainless steel milling insert and a durable steel milling insert without work hardening. Consequently, operators maintain feeds up to 0.15 mm/z reliably.

4. Why choose this indexable milling insert over solid carbide end mills?

Specifically, this square-profile indexable milling insert provides four usable cutting corners per tip. In addition, operators simply rotate to a fresh corner instead of regrinding, which makes this CNC milling insert a cost-effective carbide insert for milling. As a result, factories lower tool replacement expenses during continuous production runs.

5. Can shops use these milling inserts on an indexable drilling system?

First, standard 4NKT inserts serve rotational milling cutters rather than an indexable drilling system. In addition, hole-making setups require a dedicated drilling insert for steel or a specialized drilling insert for stainless steel to balance axial thrust. Therefore, machinists reserve 4NKT tips strictly for face, shoulder, and helical ramping operations.
